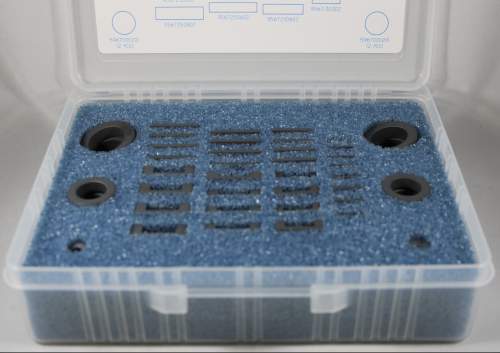

High-Frequency Mini Power Kit (For 67 Material)
Fair-Rite Products' HF Mini Power Kit (featuring their 67 material) contains various sizes of toroids and EQ/I cores allowing designers to quickly test the advantages that 67 material brings to their design. Optimized for power applications between 5 MHz and 25 MHz, 67 material is a great choice for high-frequency switching power supplies where low core loss and a stable temperature response are important for a successful product.

Resources

Features
  • Low power loss up to 25 MHz to increase design efficiency and reduce package size
  • Excellent temperature stability to provide reliable design parameters over a very wide operating range
Applications
  • DC-to-DC switch mode power supplies (boost/buck), like those found in portable devices such as laptops
  • AC-to-DC switch mode power supplies (PFC), such as those found in consumer electronics
  • Isolation power supplies (flyback/inverter-transformer), such as those used in H-bridge drivers and sensor circuits

High-Frequency Mini Power Kit
Image Manufacturer Part Number Description Kit Type Quantity Mounting Type   View Details
0199000044 datasheet link HF MINI POWER KIT 0199000044 HF MINI POWER KIT Ferrite Cores - Cables and Wiring 44 Pieces (10 Values - Mixed Quantities) Free Hanging   0199000044 product page link

2018062203 / Tools / Digi-Key Electronics / Sunday 24. June 2018 ---
