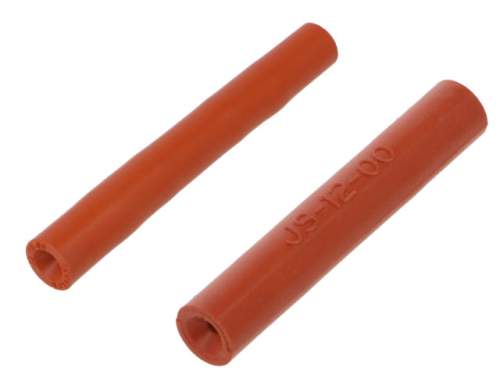

Jiffy Splice connectors from TE Connectivity are a unique, easy-to-use alternative to permanent splices. They are made from the same high-quality silicone elastomer as DEUTSCH connector seals and grommets. The body of a Jiffy Splice connector secures a pair of contacts in a compact, environmentally sealed unit that is resistant to fuels, oils, and other liquids. Since they are available in two sizes (for size 16 and size 12 contacts), you can connect wires with cross-sections from 0.5 to 2.5 mm2 (from 20 to 12AWG). Contacts must be purchased separately according to requirements.
You can use standard tools from DEUTSCH to ensure the Jiffy Splice products will be easy to install and use.
| Specification: |
|
| Connector type |
wire-wire |
| Rated current |
up to 25A (size 12 contact variant) |
| Connector series |
Jiffy Splice |
| Outer diameter of wire |
2.54...4.32mm |
| Connector variant |
no contacts |
| Operating temperature |
-55 – 125°C |
| Symbol |
Description |
| JS-12-00 |
Connector: wire-wire; Jiffy Splice; coupler; male + female |
| JS-16-00 |
Connector: wire-wire; Jiffy Splice; coupler; male + female |
