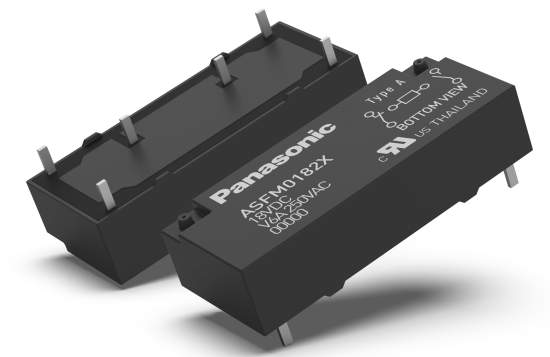

SFM relays offer forcibly guided power contacts according to EN 61810-3 on both NO (6A) and NC (4A) side to control loads like valves directly. On the other side, the silver alloy contacts can handle low level loads down to 10V 1mA as well as support e.g. signaling boards in railway applications.
A very high shock and vibration resistance ≥ 20g, a low coil holding power of 100mW, an ambient temperature range from -40°C up to 85°C and reinforced insulation ≥ 5.5mm (V=230V overvoltage category III, 6kV) on NO side make the relay the ideal choice for all kinds of safety applications.
Key Features
- 1NO/1NC relay with forcibly guided contacts according to EN 61810-3
- Extremely low height of 7.8mm
- Rating 6A (NO), 4A (NC) @ 250V AC, 30V DC
- 100mW coil holding power
- High shock resistance > 20g
- THT & THR type available
- Reinforced insulation ≥ 5.5mm (V=230V overvoltage category III, 6kV) on NO side
- Coil voltage from 3 to 24V
- Ambient temperature range -40 to +85°C
Typical Applications
- Safety relay modules
- Safety controller
- Safe motion control
- Elevator / escalator control
- Railway signaling
- Train door control
- Access control
