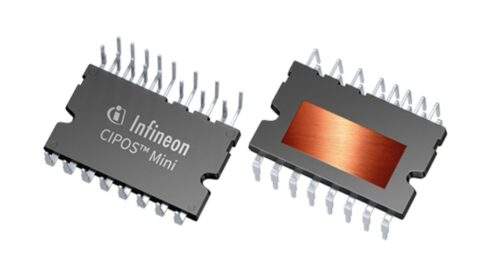

The IM564-X6D is a new 20 A CIPOS™ Mini PFC-integrated IPM that combines a single boost PFC and three-phase inverter in one package. The PFC integration into inverter IPM helps to reduce significant PCB area and simplify manufacturing process to reduce overall system cost.
Moreover, IM564-X6D incorporates a CoolMOS™ power MOSFET and a rapid switching diode for PFC stage to increase PFC switching frequency up to 150 kHz. This enables significant inductor size reduction for high power density with small system size.
Features
– Single boost PFC and three phase inverter in one package
– 20 A TRENCHSTOP™ IGBTs for inverter stage
– 115 mΩ CoolMOS™ power MOSFET for PFC stage
– PFC switching frequency up to 150 kHz
– Enable high power density with smaller system
– Built-in temperature monitoring
– Motor power rating up to 2400 W at 10 kHz
– UL certified
Competitive advantage
– Single boost PFC stage and inverter stage in one package
– System size reduction and cost improvement
Benefits
– System size reduction with PFC integration into inverter module
– Significant inductor size reduction with high PFC switching
– Cost improvement from lower BOM count, simplified assembly pro-cess
– Excellent thermal performance with DCB substrate
Target applications
– Home appliances
– Aircon
– Pumps & fans
– Motor control and drives
– Motor control for industrial automation
– Heating ventilation and air conditioning (HVAC)
Application diagram
Product overview incl. data sheet link
| Rutronik Order Code |
Infineon Product Name |
SP Number |
Package |
| IGBT2737 |
IM564-X6D |
SP003014000 |
MDIP-24 |
| TOOL4337 |
EVAL-M3-IM564 |
SP005403067 |
board |
