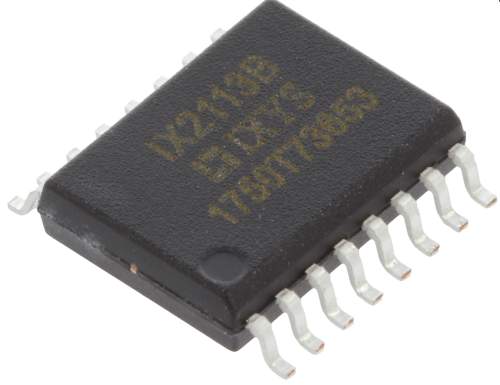

TME offer now includes a new IX2113 integrated circuit by IXYS. It is designed to control a MOSFET or IGBT type transistor gateway, where high switching speed is important. The output circuit is composed of two independent high-side and low-side referenced channels capable of sourcing and sinking 2A.
The driver is extremely robust and practically immune to dV/dt voltage transients. This is all thanks to IXYS' use of a specific technological process: high-voltage BCDMOS on SOI (silicon on insulator) substrate. BCD (Bipolar-CMOS-DMOS) is a key technology in power ICs. A single chip combines the advantages of bipolar systems for analogue solutions, CMOS systems for digital applications as well as DMOS systems for high voltage and power applications.
Other features:
- immunity to dV/dt voltage transients
- 3.3V logic compatible
- UVLO – undervoltage lockout for both high-side and low-side outputs
| Voltage class: |
+600V |
| Current efficiency: |
-2A/+2A |
| Delay matching: |
20ns |
Discover the IX2113 driver available in SMD and THT version »
| Symbol |
Description |
| IX2113B |
IC:driver;high-/low-side,gate driver;-2÷2A; Channels:2 |
| IX2113G |
IC:driver;high-/low-side,gate driver;-2÷2A;Channels:2 |
