Murata Power Solutions’ DC power meters display critical measurements in DC-powered equipment

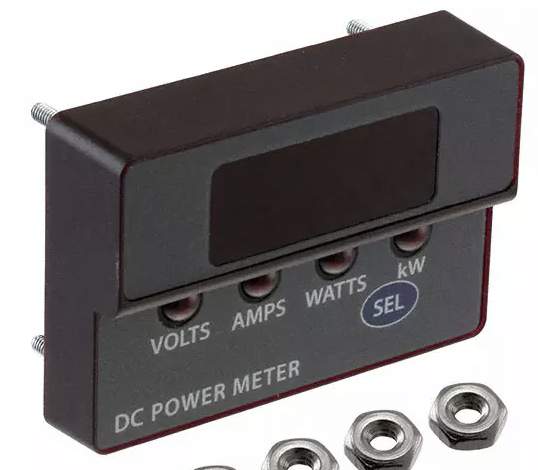

The Murata Power Solutions DCM20 series provides voltage, amperage, and power measurements for DC-powered equipment. The front panel selector-switch provides two modes of operation: a fixed reading of any of the three parameters or a continuous cycling through all three measurements. The large and bright LED display makes the DCM20 easy to read, yet the miniature size is perfect for laboratory instrumentation and any products that require precise monitoring of DC voltage, current, and power.
| Features |
|
Applications |
- Displays DC volts, amperes, watts, and kilowatts
- Two display modes: continuous auto cycling or fixed
- 9 VDC to 72 VDC voltage operation
- 0.5 VDC to 72 VDC voltage measurement range
- 0 A to 1,200 A current measurement range (dependent on external shunt)
- 0 kW to 96 kW power measurement range
- Supports both high-side and low-side current monitoring
- Long-life contactless touch-sensor function selector switch
- Low current consumption (< 10 mA at 12 VDC)
- Internal self-resetting fuse
- One-piece polycarbonate housing fits 0U and 1U racks
- Compact surface mount design occupies minimal panel space
- Bright LED display with four function annunciators
- Choice of red, green, or blue display
|
|
- Replacing analog meters with digital meters
- High-quality analog meters can cost as much as digitals
- Digital meters are more rugged than analog meters
- Fill the need for more precision and accuracy
- Power systems
- High-end power distribution cords
- Back-up power systems
- Portable generators
- Power distribution units / panels
- Process controls
- Specialized applications
- Golf carts
- Window-cleaning hoists
- Floor sanders
|
DCM20 Series Three-Function DC Power Meters
|
Image |
Manufacturer Part Number |
Description |
Type |
Measuring Range |
Display Type |
|
View Details |
 |
 |
DCM20-1-DC5-R-C |
THREE-FUNCTION METER, DC VOLTS, |
Multifunction Meter (Current, Voltage, Wattage) |
Multiple |
LED - Red Characters |
|
|
