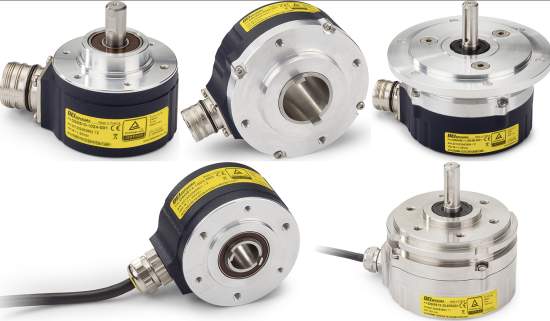

en- Rugged Safety Integrated Level (SIL) Encoders
Sensata Sensors' rugged SIL encoders are ideal position sensors for a wide range of industrial applications

Sensata's functional safety encoders are rotary encoders that have been developed with SIL and PLE safety standards in mind. They are ideal position sensors for a wide range of industrial applications including robotics, gas and oil, and factory automation. These encoders meet machinery directive 2006/42/EC and EN ISO 13849-1 standards for safety and reliability.

Features
  • Usable up to SIL3 and Cat.4/PLe according to IEC 61508/EN ISO 13849
  • Suitable for safe motor feedback according to IEC 61800-5-2
  • Robustness and excellent resistance to shock and vibration
  • High protection level: IP65
  • High temperature performance -20°C to +85°C
  • Power supply 5 VDC or 11 VDC/30 VDC
  • Digital TTL/RS422 or HTL or sine/cosine 1VPP output
  • Resolutions up to 2,500 ppr
  • 58 mm encoder, solid shaft 6 mm, 9.52 mm, or 10 mm (DSM5H), and through shaft, standard 14 mm (DSO5H)
  • Connector or cable output (DSM5, side output only for DSO5)
  • Stainless steel version available as an option (DSM5X)
  • Adapted anti-rotation system (DSO5H)


DSO5H Rugged SIL Encoders

Image Manufacturer Part Number Description   View Details
DSO5H14//5G59//01024//G6R//**DX** datasheet link ROTARY ENCODR INCREMENT 1024PPR DSO5H14//5G59//01024//G6R//**DX** ROTARY ENCODR INCREMENT 1024PPR   DSO5H14//5G59//01024//G6R//**DX** product page link
DSO5H14//5G59//02048//G6R//**DX** datasheet link ROTARY ENCODR INCREMENT 2048PPR DSO5H14//5G59//02048//G6R//**DX** ROTARY ENCODR INCREMENT 2048PPR   DSO5H14//5G59//02048//G6R//**DX** product page link

View More


DSM5H Rugged SIL Encoders

Image Manufacturer Part Number Description   View Details
DSM5H06//5G59//01024//G6R/1J/**03** datasheet link ROTARY ENCODR INCREMENT 1024PPR DSM5H06//5G59//01024//G6R/1J/**03** ROTARY ENCODR INCREMENT 1024PPR   DSM5H06//5G59//01024//G6R/1J/**03** product page link
DSM5H06//5G59//02048//G6R/1J/**03** datasheet link ROTARY ENCODR INCREMENT 2048PPR DSM5H06//5G59//02048//G6R/1J/**03** ROTARY ENCODR INCREMENT 2048PPR   DSM5H06//5G59//02048//G6R/1J/**03** product page link
DSM5H06//5G59//02048//GPR020/1J/**03** datasheet link ROTARY ENCODR INCREMENT 2048PPR DSM5H06//5G59//02048//GPR020/1J/**03** ROTARY ENCODR INCREMENT 2048PPR   DSM5H06//5G59//02048//GPR020/1J/**03** product page link
DSM5H10//5WTN//01024//G6R/1J/CS**** datasheet link ROTARY ENCODR INCREMENT 1024PPR DSM5H10//5WTN//01024//G6R/1J/CS**** ROTARY ENCODR INCREMENT 1024PPR   DSM5H10//5WTN//01024//G6R/1J/CS**** product page link

View More


Accessories
Image Manufacturer Part Number Description   View Details
M9445/044 datasheet link FLEXMOUNT FOR DSO5 SERIES M9445/044 FLEXMOUNT FOR DSO5 SERIES   M9445/044 product page link
M9445/047 datasheet link TETHER ARM KIT FOR DSO5 M9445/047 TETHER ARM KIT FOR DSO5   M9445/047 product page link
9416/076-8230/020-G6-020 datasheet link 2M MATING CABLE ASSEMBLY 9416/076-8230/020-G6-020 2M MATING CABLE ASSEMBLY   9416/076-8230/020-G6-020 product page link
9416/076-8230/020-G6-050 datasheet link 5M MATING CABLE ASSEMBLY 9416/076-8230/020-G6-050 5M MATING CABLE ASSEMBLY   9416/076-8230/020-G6-050 product page link
9416/076-8230/020-G6-070 datasheet link 7M MATING CABLE ASSEMBLY 9416/076-8230/020-G6-070 7M MATING CABLE ASSEMBLY   9416/076-8230/020-G6-070 product page link
9416/076-8230/020-G6-100 datasheet link 10M MATING CABLE ASSEMBLY 9416/076-8230/020-G6-100 10M MATING CABLE ASSEMBLY   9416/076-8230/020-G6-100 product page link
